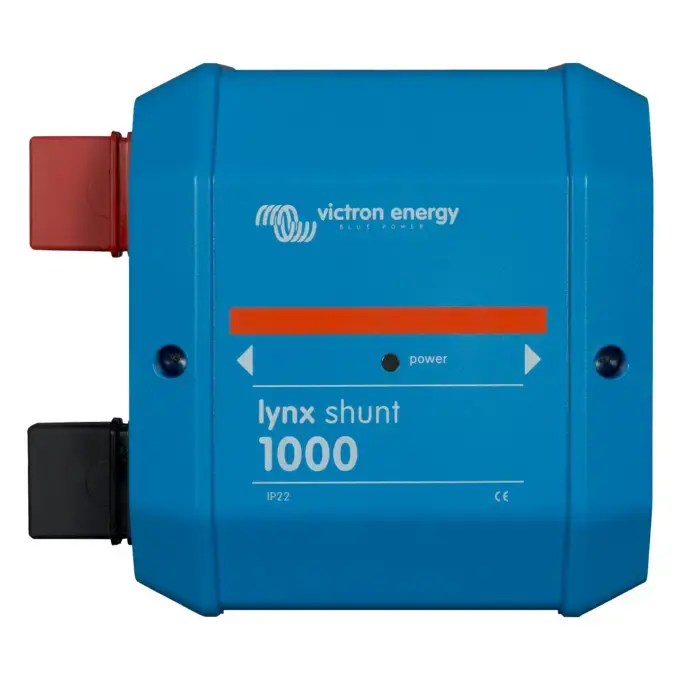

Lynx Shunt VE.Can

The Lynx Shunt VE.Can is an intelligent 1000A shunt with a location for a main system fuse (not included). Its built-in battery monitor accurately tracks the state of charge of your battery. Information is read using a GX device, such as the Cerbo GX. The Lynx Shunt VE.Can is part of the modular Lynx Distribution System.

Busbar-Integrated Battery Monitoring

The Lynx Shunt VE.Can is an integral part of the Lynx Distribution System, featuring both a positive and negative busbar, an integrated battery monitor, and a fuse holder for the main system fuse. It is available in two versions: M8 and M10. The shunt communicates with GX devices via VE.Can and is equipped with a power LED for status indication.

M10 Model – External Fuse Flexibility

The M10 model includes an additional busbar section that can replace the fuse inside the shunt. This allows the main system fuse to be installed externally in a different location, which is particularly useful in larger systems where higher-rated fuses are required.

Included Accessories

The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, which are used when connecting the unit to a GX device.

Fuse Compatibility

• Lynx Shunt VE.Can M8: Designed to accommodate a CNN fuse

• Lynx Shunt VE.Can M10: Compatible with CNN, ANL, or Mega fuses

Fuses must be purchased separately. For additional details, refer to the Fusing section in the Lynx Shunt VE.Can manual.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, power distribution, fusing, battery monitoring, and/or lithium battery management.

The Lynx Distribution System consists of the following components:

• Lynx Power In (M8, M10)A positive and negative busbar with four connections for batteries or DC equipment.

• Lynx Class-T Power In (M10)A positive and negative busbar that connects and fuses up to two strings of lithium batteries using Class-T fuses (available in 225 A, 250 A, 350 A, and 400 A; must be purchased separately).

• Lynx Distributor (M8, M10)A positive and negative busbar with four fused connections for batteries or DC equipment, including fuse monitoring.

• Lynx Shunt VE.Can (M8, M10)A positive busbar with space for a main system fuse and a negative busbar with a shunt for battery monitoring. Includes VE.Can communication for monitoring and configuration via a GX device.

• Lynx Smart BMS 500 and 1000 (M8 / M10)Designed for use with Victron Energy Smart Lithium batteries. Features a positive busbar with a contactor controlled by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. Includes Bluetooth connectivity via the VictronConnect app and VE.Can communication for monitoring with a GX device and the VRM portal.Note: The 1000A model is available only in M10.

• Lynx Smart BMS 500 and 1000 NG (M10)Designed for Victron Energy Lithium NG batteries. Includes Bluetooth connectivity via the VictronConnect app and VE.Can communication for monitoring with a GX device and the VRM portal.
