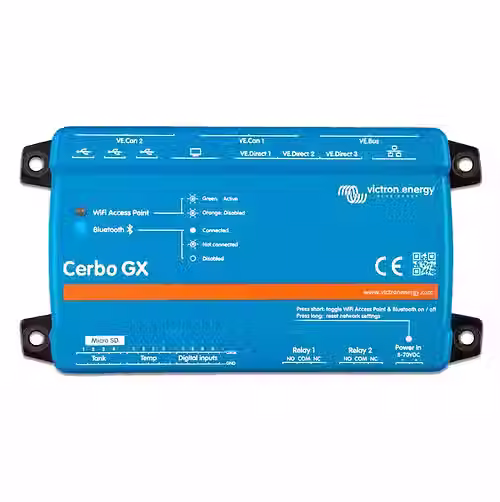

Cerbo GX MK2

The Cerbo GX MK2 is an all-new communication center for your energy system, giving you full control and visibility from anywhere. Easily connect via the Victron Remote Management (VRM) portal, or access the system directly using a GX Touch 50, an MFD, or the VictronConnect app, thanks to its added Bluetooth capability.

This latest addition to the GX family combines advanced connectivity and smart system management, redefining off-grid, marine, and backup power solutions.

Key Improvements Over the Original Cerbo GX

The MK2 introduces several enhancements for greater flexibility and performance:

• Two fully functional CAN bus ports (VE.Can 1 and VE.Can 2) instead of one VE.Can and one BMS-CAN port

• VE.Can 1 is isolated, allowing safer and more reliable connections

• Rotated RJ-45 sockets (180°) for easier cable management

• All three USB ports fully functional, instead of two functional and one for power only

• Digital inputs support pulse counting, enabling more advanced monitoring

• Designed for specific applications, such as the US RV market, where a Lynx Smart BMS (VE.Can) and RV-C port are required




Perfect Monitoring & Control

Instantly monitor your system, including:

• Battery state of charge

• Power consumption

• Solar PV harvest

• Generator and mains input

• Tank levels and temperature

Easily control shore power limits, start/stop generators, or adjust settings for optimal performance. Receive alerts, run diagnostics, and resolve challenges remotely. The Cerbo GX MK2 makes managing complex systems effortless.

Maximize System Performance

The Cerbo GX MK2 optimizes the performance of all connected components in real time:

• Dual-Core Processor for faster, smoother operation

• Support for larger systems with an extra CAN bus port

• Track managed (lithium) batteries while supporting up to 25 VE.Can solar chargers

• NMEA 2000-out support for easy integration into boat networks

• Expandable monitoring and control with:

  • 4 tank ports

  • 4 temperature ports

  • 3 VE.Direct ports

  • 3 USB ports

  • 4 digital inputs

  • 2 relays

Maximizing system performance has never been easier.

Expand Your View

Use the optional GX Touch 50 display for an instant overview of your system and easy adjustment of settings. Its super-slim, waterproof 5-inch design, top-mountable setup, and simple installation provide flexibility when creating a crisp, professional dashboard.

Outsmart Any Power Challenge

The Cerbo GX MK2 adapts to virtually any application:

• Marine, Backup & Off-grid: auto-start/stop generators or delay ignition during quiet periods

• Energy Storage Systems: keep backup batteries fully charged, activate during power cuts, and divert excess solar energy to self-consumption

• RV and emergency vehicles: ensure vital systems function flawlessly

The Cerbo GX MK2 extends perfect control, helping your system run efficiently, reliably, and intelligently.
